Ah, listening to time waveforms on the Analyst Platform – because who needs easy listening when you can enjoy the sweet harmony of bearings and gears in distress?
In the realm of condition monitoring and predictive maintenance, the ability to decipher the nuances of machine behavior is crucial. One of the essential tools in this field is the time waveform, which is a graphical representation of a machine's vibration or acoustic signal over time. These waveforms contain valuable information about the health of the machinery and can help identify potential issues before they escalate into major problems. The Analyst Page in the Augury Platform is a powerful tool that allows professionals to not only visualize, but also listen to these time waveforms, enhancing their ability to diagnose and manage equipment health effectively.
Understanding Time Waveforms:
Before attempting to listen to the time waveforms, it's important to understand what these waveforms represent. A time waveform represents the amplitude of a signal as it varies over time. In the context of predictive maintenance on complex machinery, this signal is the raw vibration data as collected by our Endpoints. Time waveforms can reveal irregularities, oscillations, frequencies, and patterns that might indicate underlying mechanical issues.
The Analyst Platform:
The Analyst Page in the Augury Platform is the place where all of the historical raw data and feature trends are stored and can be analyzed by anyone who has the capability to and/or want to learn from. Your Reliability Success Manager and Vibration Analyst live on this page and more likely than not reviews this page on recurring calls.
Listening to Time Waveforms:
Listening to time waveforms is a practice that can provide valuable insights into the behavior of a machine. Human ears are remarkably sensitive to variations in sound, and many types of machine faults can produce distinctive acoustic signatures. Here's a step-by-step guide on how to listen to time waveforms on the Analyst Platform:
1. Access the Analyst Platform via the Machine Page:
- Scroll down to the bottom of the machine page and click on "Analyst Platform".
2. Selecting what to listen to:
- As you likely know by now, in the Analyst Platform, you can select any location/sensor and any direction for data analyst (via a trend or session analyst through the FFT spectrum or time waveform)
- Select the Endpoint location and direction of vibration to listen at the top of the page. See below.
3. Listening:

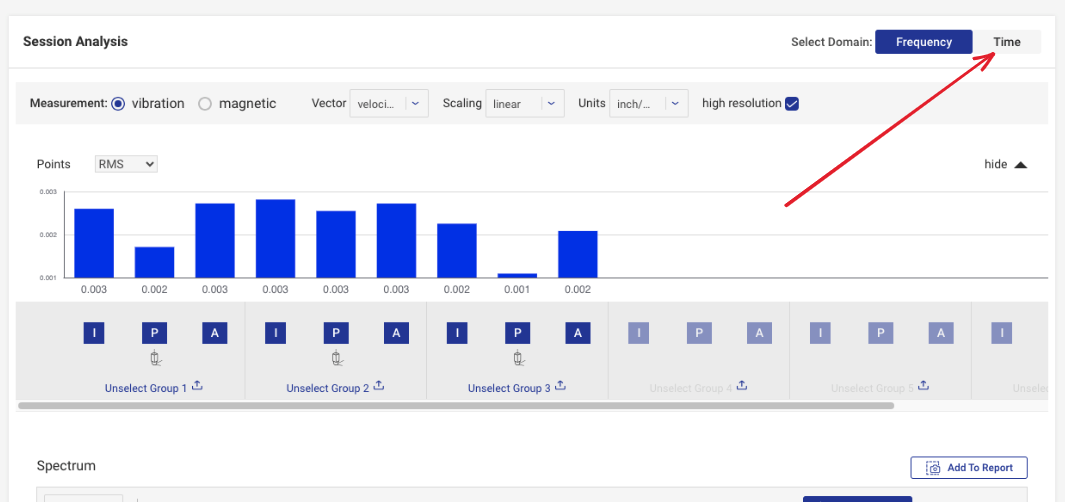

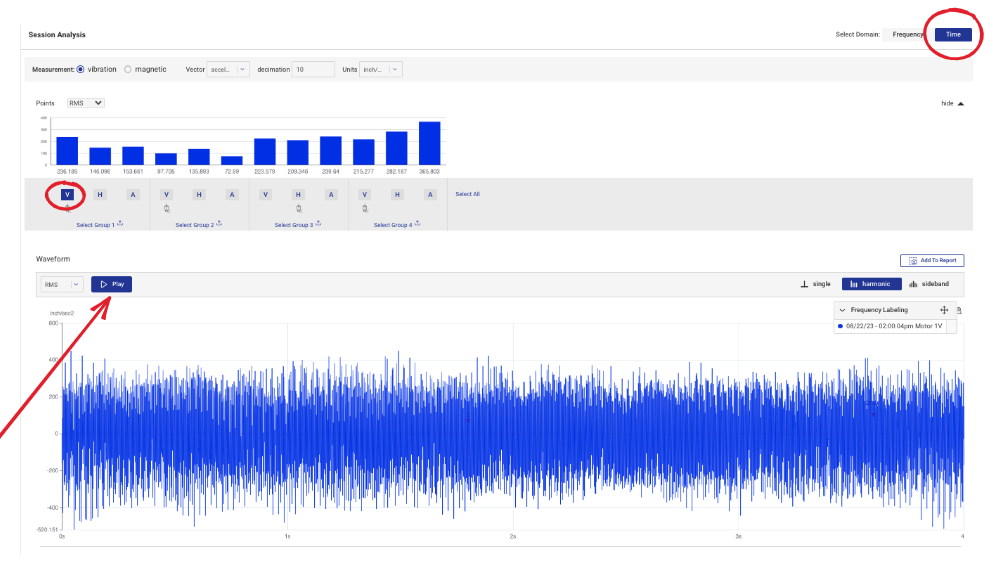

- Scroll to the bottom of the Analyst Platform, under the Session Analysis, changing the Domain from Frequency to Time. This will allow the visualization at the bottom of the Session Analyst to change from Spectrum analysis to time waveform analysis.
- If you would like to listen to any other sensor, position, or direction, simply unclick your current position/direction and click the one you want.
- Recommendation: only listen to one direction and one position at a time for best audio.
- The data you are listening to is a representation of the vibration data (not a microphone).
Benefits of Auditory Analysis:
Auditory analysis of time waveforms offers several benefits:
- Early Detection: Unusual sounds might indicate problems that are in their early stages. Addressing these issues early can prevent costly breakdowns and production downtime.
- Holistic Assessment: Combining visual and auditory information provides a more comprehensive understanding of machinery health.
- User Experience: Listening to waveforms can make data analysis more engaging and accessible to a broader range of maintenance professionals.
- Educational Tool: This approach can aid in training new analysts to identify common faults by associating sounds with specific issues.
The ability to listen to time waveforms on the Analyst Platform adds an extra dimension to the field of condition monitoring. By tapping into our innate sensitivity to sound, maintenance professionals can uncover hidden issues and make informed decisions about equipment maintenance. Integrating auditory analysis with visual data interpretation empowers professionals to become more effective at predictive maintenance, ultimately leading to enhanced operational efficiency and reduced downtime.
