Introduction to Augury Endpoints

Introduction

The Endpoint (EP) is the sensor that is mounted on the machine.

The endpoint takes the machine’s vibration, temperature, and magnetic samples, communicates using BLE (Bluetooth Low Energy), and transmits them to the Node (Gateway).

This article covers which endpoint types Augury uses and in which environments we use them.

Please contact your customer success manager to understand what endpoints are available in your region.

Endpoint Types

First, note that the environment in which the endpoint is installed can be different, such as dry, wet, hazardous, or explosive.

The EP type to use depends on the environment in which it is installed.

Endpoint markings on the Augury web platform and mobile app

Our endpoints are represented in the Augury platform as E1, E2, and so on.

AD_4nXcyZb6jrLiWYULexFN9oaJgp0G353GEvBuap2uuxz2g54Bw-tAcQ8RO53wj0M0pIpIfGmulz6d0jpKoysRCvctSlwXfW2zYG4Fl8EI6bEkTqIo_MRyyWxFVKpblA35n-vdFcaLj_A?key=ZaG-Jfif-lGILQOmOAz8Xw

You identify the EP type on the IoT information page or as an indication when an IoT / maintenance activity is required.

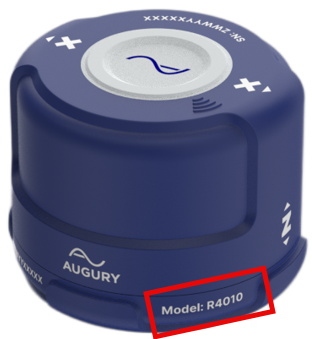

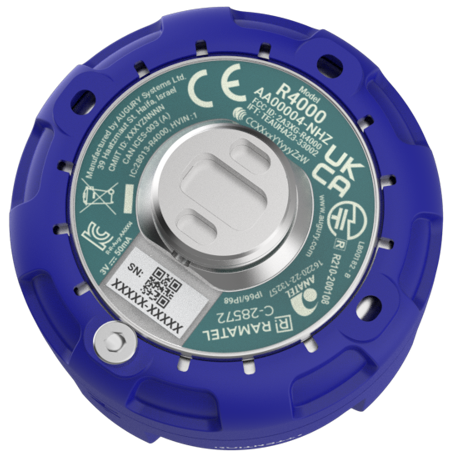

R4000 Series

EP type


Features

Environment

AD_4nXec3Sq_Djxqr0WgtH-ffmLKUW1tMmV-psXyqBxBxTf5RW-ywwwNoTKwNJdWhaXUR4io8sLFcIpIgHHqspYIFQUtghxbYSv9CPchG7qfZOG9HRhmbiXXrAHNV_6q26l4FWGQs2y5oQ?key=ZaG-Jfif-lGILQOmOAz8Xw AD_4nXdCByzme3ZpG5We8n_awfaC1fkpXIKilGO9_4OPh4u94D41Fv-I61i8VzUGH5NTVnBDXglAu5s1auMnXGoQ_WUX6HWxdzW4Om0mAqBfH-7u0Ie-VhbkMDt-tI-_jfR9RBiR9nVG4g?key=ZaG-Jfif-lGILQOmOAz8Xw
  • Wet Environment
  • Murata | FDK | EVE Battery Compatible & Replaceable

The E7 will replace E 4, 5, and 6

  • Extreme water resistance
  • Non-HZ
  • High G
AD_4nXfwH1yuD0dBzqvhLso1Z4dbQpzuI895gM42VfxG8VThrtnHXy31-vJSl0pKpJZuLBz6k59FAlEZLl_p-WHSSZJ-LUg46_KUUDm8jH1tK9bxO_J7-kZfGL2dCGF7ifi0OAoBZV6nNDXJcpCApWF-SMYEofY?key=ZaG-Jfif-lGILQOmOAz8Xw AD_4nXdvZGwGOfqJWNb3oLfXamJY88VJbL7OTrjyZPtnaXr5snwMx_EPsvxml2ykJuWArc4-UlPUqQCjrCIR3FaY6LSxnuEGNo_U2RbSVo5ZrPqe1DwHyc-we8gQbuxgBOhjLWYzMPkNrhsJ81mvu3S8HO9QbFcl?key=ZaG-Jfif-lGILQOmOAz8Xw
  • Humid environment
  • Wash down cleaning standard
  • A wet environment as part of the manufacturing process.
  • 3-5 years battery life
  • Irreplaceable Battery
  • Non-HZ
  • Low-G
  • Water resistant
AD_4nXcHTfbOdScqRDA0NCqCcJjZjMNM6cRjMx51IIjN1pGcuwXxKGGLR4uuGmYPrW-ST2KMZcp9UyZ338YckIkm_yKQN97RZUitJlio3WsHNH_-akVzyIpQJ_XS7LR__sUYl-CLva5QFX9JmPaRgy2BMTAxHJpH?key=ZaG-Jfif-lGILQOmOAz8Xw AD_4nXdD8vkCNG5q6hOxOXD55285JqM1Ad8HaIkFYgvcVNaTFtZUFF-n53nQQe10AW8xlh5eFiUmEj98qv5-tLVddDEdbclnmOH7F1EIdbRrXLVC3CSFa75D85KSfdzz22ekE6x246zq_g?key=ZaG-Jfif-lGILQOmOAz8Xw
  • Second source Battery
    (Murata, EVE, FDK)
  • 3-5 years battery life
  • Non-HZ
  • Low-G
  • Dry environment
AD_4nXdJ8rig6yA8wYRvpV8SI_fb22uZEpbwS_gSUOEzGlrJP5YKGV1qlHP7-lphLbRLcSYWh6YyF4CCL265P9cTK1N8X6rm4f5r2eksNNAAVCzddlKx4UgNO87Ynl2htBr3j2iNU3g11OK0K6SfcEctbKkmVbJG?key=ZaG-Jfif-lGILQOmOAz8Xw


  • Murata batteries only
  • 3-5 years battery life
  • Non-HZ
  • Low-G
  • Dry environment


Wet deviation, limited edition


AD_4nXeie9MMvaOoSAt29bhPruNdAR-Pc4MrUsfzoM6St0LhidvAgcZuJ-3oQCjjxlXYGDPlbgmOHqd951OJkKbaW4fv-Nd6G1qTzyvr39zuREv_KLEHdcLuueW3G91vm8gl1CJh_Y3gXxqzo-0P1QvCRfC119Cr?key=ZaG-Jfif-lGILQOmOAz8Xw AD_4nXcHj-30zPTWE4GcSuiFwEHyzwVOrJZNi4vsIO3o10-zE9c6iZ4zqmEC1YyH0lMWDOwYH-KSm04fb5eWqXatpMsV9HeajDmlFuo4fcUilZOn1-suB5lN_RA8J_qzVlhhak0so7dVx7Mx7DngRzmUJ_8bHzDp?key=ZaG-Jfif-lGILQOmOAz8Xw



  • Group F, G
  • ATEX Zone 2 & 22Hz
  • Can be mapped to continuous monitoring
  • Mounted on each of the machine bearings
  • Captures vibration, magnetic, and temperature data
  • Powered by a Murata battery
  • 3-5 years battery life
  • C1D2 Group A, B, C, D
  • C2D2 ed using NFC
  • IP64/IP68
  • HZ
  • Low G
  • Dry environment


AD_4nXeI-lZ-7EzmmNkUQB3qqdnoJkp0PBqGyyq297GbNG2DfPLnqfo4Nm_N-Ut6MmwpP4ShhuZUDYP5j1oTrf5sSdCq8bJNHgbyHcSn-5_ORILP1GPy3_E0QFjajMaz-u-FtJ2Py1EAP93zwaEMWU_TJ-SMUwwy?key=ZaG-Jfif-lGILQOmOAz8Xw AD_4nXc0uffZPSec19vsLJfk8FRgCXrQtZZ7WMZJgm7cWJVlymW2PyWFsKlXJ49kbndhaX9JMNRBilEddm9xWXLqpb051iFD7SmfwTVf2XZRb105qW1bsP7ArWPJx2fiIZpqveX5nsMTgmLVyCVlT3imMCKQbsA?key=ZaG-Jfif-lGILQOmOAz8Xw

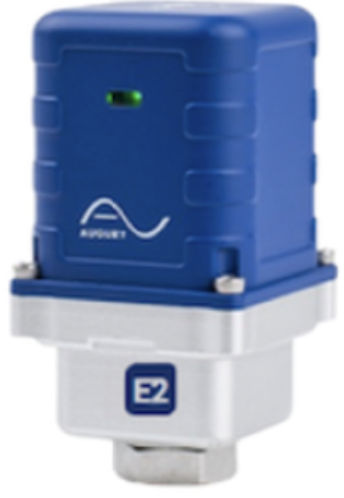

  • Continuous monitoring device
  • 1 triaxial digital vibration sensor
  • Powered by a replaceable Type-C battery
  • Battery life up to 3 years (2nd gen)
  • IP64/IP68
  • Non-HZ
  • Low-G

Note: E2 is End of Life, not manufactured
Will be supported for ~5 more years (battery replacement, mounts)
Can be replaced by R4000 NHZ (E4,E5) for wet environments R4000 WR

AD_4nXdjwYN1hQMa9c5M1qiS1ttQjt2iYWgKQvzaLKeLZtBzpcxVcYqIAAA4oD_vLSy9XLSNZ35XAi4Y3JRdWVYgWUe-5qZXoRsWzDR9Zc06s1caU8pAGdLGjLIIcHwUOfElmz_tmOFNDQq96r9PK_90BB5ZweLW?key=ZaG-Jfif-lGILQOmOAz8Xw AD_4nXdZGSo0wASrSLC7_96-XEvrfKrWpnATsrq0UgFTVM54VFNMoXOn1gbjBRPN1LTSPJimk3mioLAjCpVsclza1jxuI7GqSkmb8NNfAklQ3g6SbcUOhp9NefHVxL8B14vnR6re7n7ELp0nFbJHR8yNQwHHXndu?key=ZaG-Jfif-lGILQOmOAz8Xw

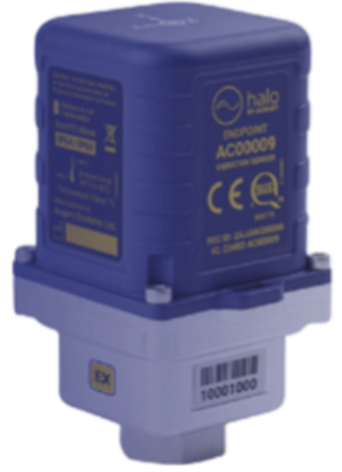

  • Continuous monitoring device
  • 3 Uni-axial analog vibration sensors
  • Powered by a Type C battery (Non-replaceable)
  • Battery life up to 2 years (1st Gen
  • High-G
  • HZ environments:
    • C1D2 Group A, B, C, D
    • C2D2 Group F, G, ○
    • ATEX Zone2&22


Note: EX is End of Life - It is not manufactured and has a limited inventory.

  • For non-high-G, it can be replaced by R4000 (E3)
  • For High-G machines, it can be replaced by Ranger Pro (R1)

AD_4nXeFhK9NQebqMR0iYnum9gJ3sPxsvQezX19VAnLOs3RNNf-eRErNYIVSH_ftC9FOt-wEk8DToCqN6RW2HAbAtDyg79BmkJO-SzYYKRCGD7cCWgh-iyKV8nXIF5VNtYitlp0KAA1C-gfDLBcxNXLNo5PZnMfl?key=ZaG-Jfif-lGILQOmOAz8Xw AD_4nXdlhDeZ9m5WDyaKNJz_DYAbN31n-rbgAtNw4vjAElVA_BGAn-9CU8enxP_jb7DrwdvQirtgb7SH_d2CYyeOPytwfgQdmOdIhBDop8EoKTOV3ilbWss7C0Hs-ZUaNfsPeEkOoIdfwpd9_HtR80KLg3-xhMHO?key=ZaG-Jfif-lGILQOmOAz8Xw

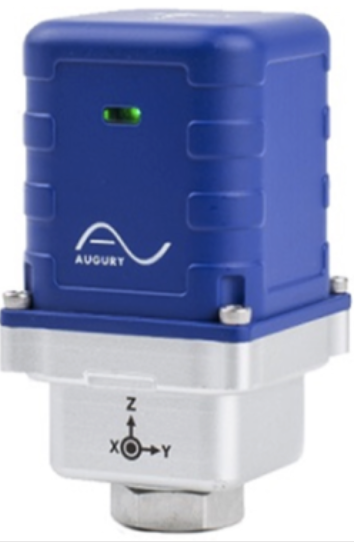

  • Continuous monitoring device
  • 3 Uni-axial analog vibration sensors
  • Powered by a replaceable Type-C battery
  • Battery life up to 3 years (2nd gen)
  • IP64/IP68
  • Non-HZ
  • High-G

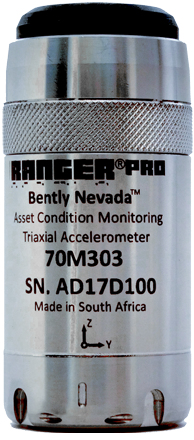

Ranger Pro

EP type


Features

Environment

AD_4nXcWAHc33KDf2pjTf9nI_Quiyc-LwKMtyZ8YVfztiDlsCTGGYbGT8ROv-C-8tj5PkjdR1nKEhklvUYVGvSd2sV6fjDn49wrDskC5ffJV5SR0mZp249xj9BadLsnx2ACRdyF5MAzHcg?key=ZaG-Jfif-lGILQOmOAz8Xw AD_4nXeIuHIa9lDxfPn3Sls3MtyoXkSYfQPkiAZ0ssD4TsEAi8qoRJn5GqW9XZ3KuWE09k50KvwpObfUvY9DDOrMMqRItJJzuR64deIq0q42C4mY6w0EePvq8rzoQPwaC027NmiLYxX28w?key=ZaG-Jfif-lGILQOmOAz8Xw
  • Captures vibration, magnetic, and temperature data
  • Powered by a replaceable Type-D 3.6V lithium-thionyl chloride battery
  • Battery life up to 3 - 5 years
  • IP67 dust and water resistance
  • HZ environment
    Certified for C1D1 and C1D2 environments
  • High-G
  • Moist environment

Glossary

  • High-G machines. These are high-vibration machines with vibration levels that are usually over 16G peak to peak and require specialized sensors capable of detecting higher frequencies due to the intense motion they experience.
  • Low-G machines. These are lower vibration levels, less than 16G peak to peak.
    These machines can work with less robust sensors.
  • Hazardous (explosive)  environment. The following is relevant to the US. Contact support for other regions or check out the datasheet.
    • Use C1D1 and C2D1 in environments where explosive gases/vapors and powder/dust are always or occasionally present.
    • ATEX - Zone 2, 22
  • Wet environment. Either a humid environment or the machinery is washed down.

Download a PDF of this article by clicking on the following attachment.
